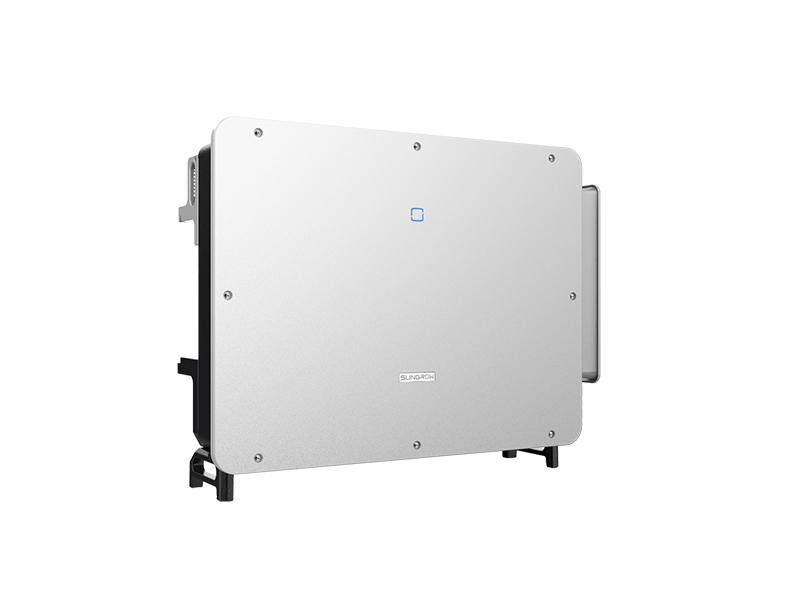

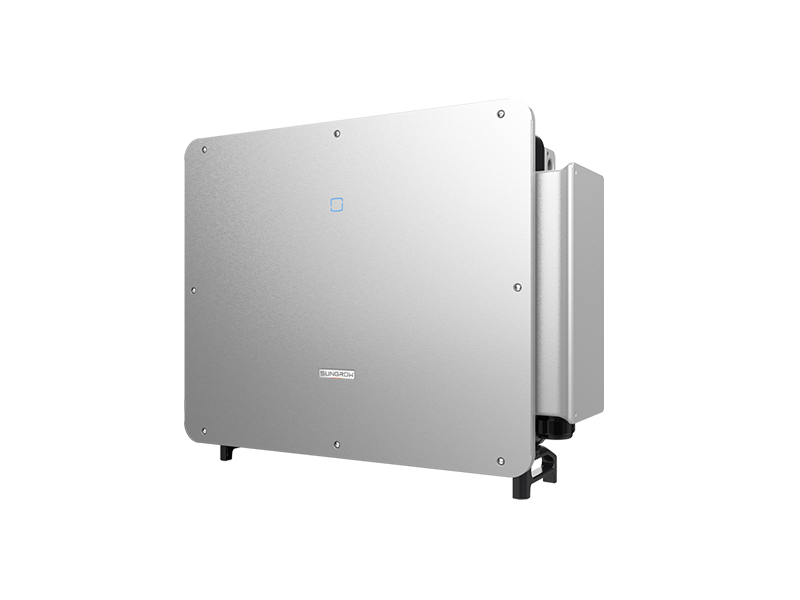

SUNGROW SG350HX Multi-MPPT String Inverter

Efficient power generation

◆ 16 MPPTs with max. efficiency 99.01%

◆ DC 15A current input, compatiable with over 500W+ PV module

◆ Dynamic shading optimization mode

◆ Single string maximum DC 20A, fully matched with 182 and 210 series components

◆ Open platform for data exchange and integration with tracking brackets

Lower Investment

◆ Compatible max. 240mm² Al AC cables

◆ Drawer-style cable sealing plate support AC cable pre-assembly

◆ Fast reactive response less than 30ms, replacing SVG

◆ Support PLC communication, save communication cables and construction costs

Smart O&M

◆ Key component diagnosis and protection

◆ Smart IV Curve Diagnosis

◆ Grid fault record function, easy for remote O&M

◆ AC/DC dual power redundancy design, 24-hour status monitoring

◆ When active and fully loaded, the power factor can reach 0.9, supporting night SVG function

Proven Safety

◆ IP66 protection and C5 Anti-corrosion adapt to various harsh environments

◆ DC Type I+II SPD, AC Type II SPD

◆ Support AFCI 2.0 function

◆ IP68 intelligent fan cooling, low temperature rise, long service life
